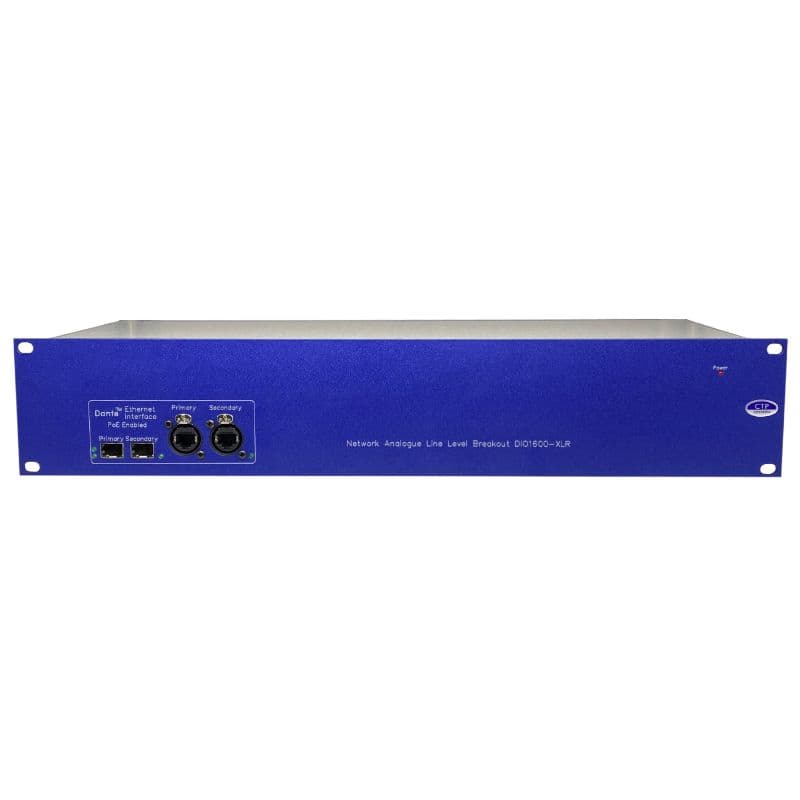

The CTP Systems DIO1600-XLR is a Dante/AES67 interface that connects 16 analogue line-level inputs and 16 analogue line-level outputs to an audio network. Gain on every input and output is adjustable from +12 dB to -12 dB. In the standard configuration, the XLR connectors are on the front panel and the network connections are on the rear.

The network can use copper or fibre through two SFP modules, with secondary ports provided for redundancy. All level controls are managed through the built-in web server. The unit operates at 48 and 96 kHz sample rates and can also be used in AES67 mode.

Power options:

• PoE operation without a mains supply where the installation supports it.
• 100-240 V AC mains input.
• 12 V input for a redundant power arrangement.

Format: 2RU high and 150 mm deep.
