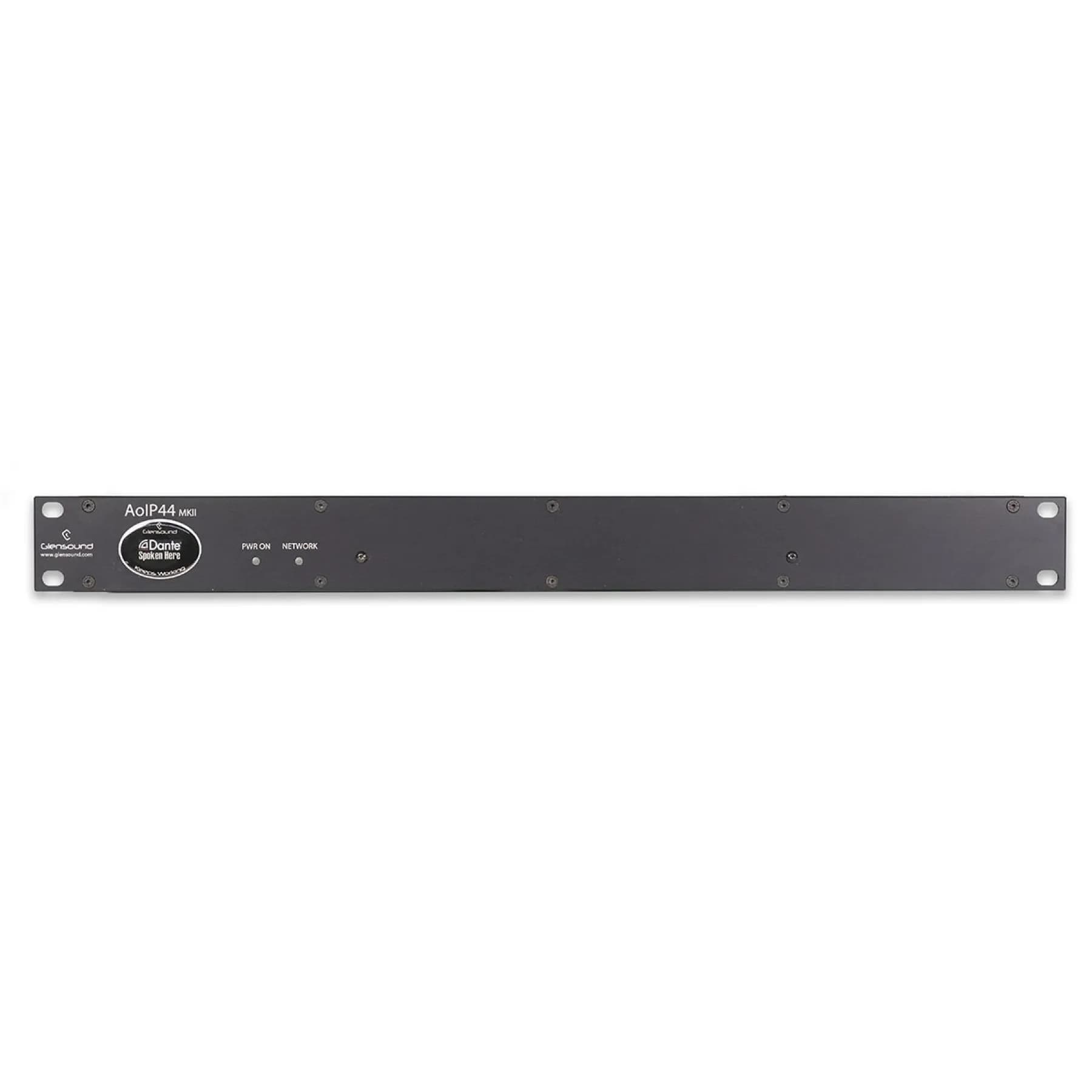

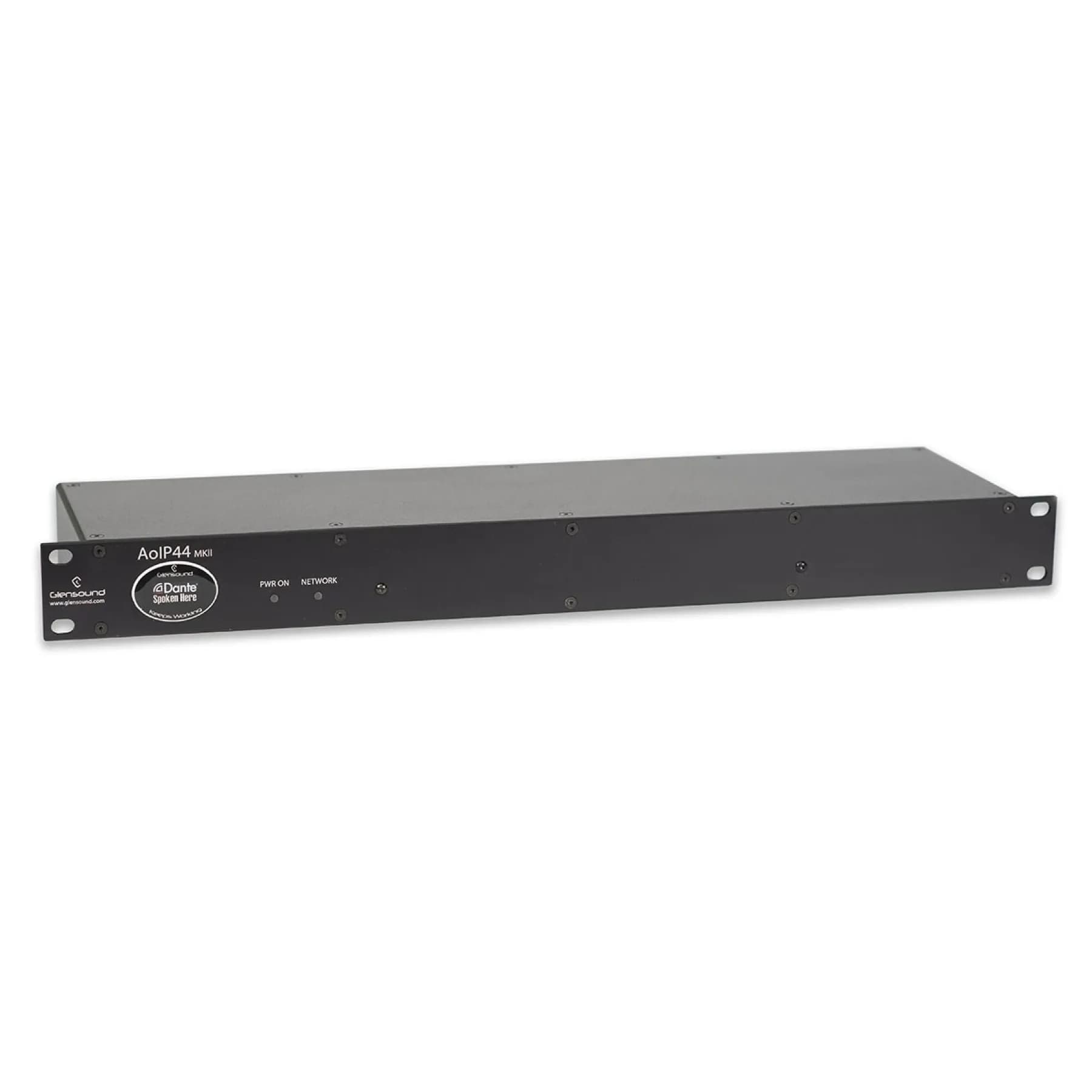

AoIP-44 is a 1U rack unit that connects four balanced analogue input circuits and four balanced analogue output circuits to a Dante/AES67 network. It is intended for studios, OB vehicles and installations needing reliable fixed-format analogue conversion.

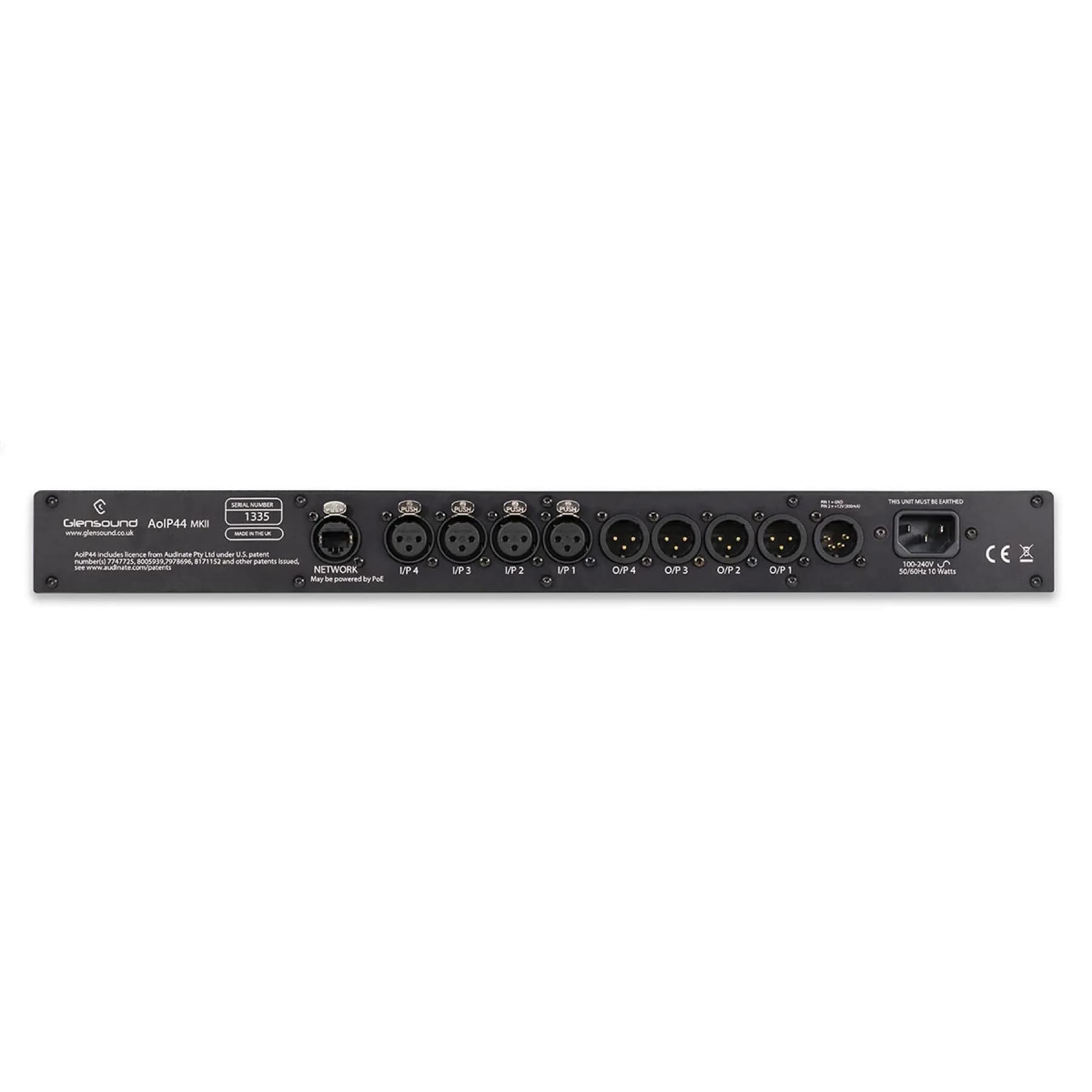

• 4 balanced inputs and 4 balanced outputs on 3-pin XLR.
• 19 inch, 1U mounting with connectors facing either front or rear.
• 24-bit Dante audio with AES67 compatibility.
• Powered from mains, PoE or backup DC.

Audio I/O4 balanced analogue inputs and 4 balanced analogue outputsNetwork rate4 bidirectional channels at 44.1/48 kHz; 2 at 88.2/96 kHzMaximum level+18 dBuDynamic range112.6 dBFormat19 inch, 1UWeight1.2 kg
