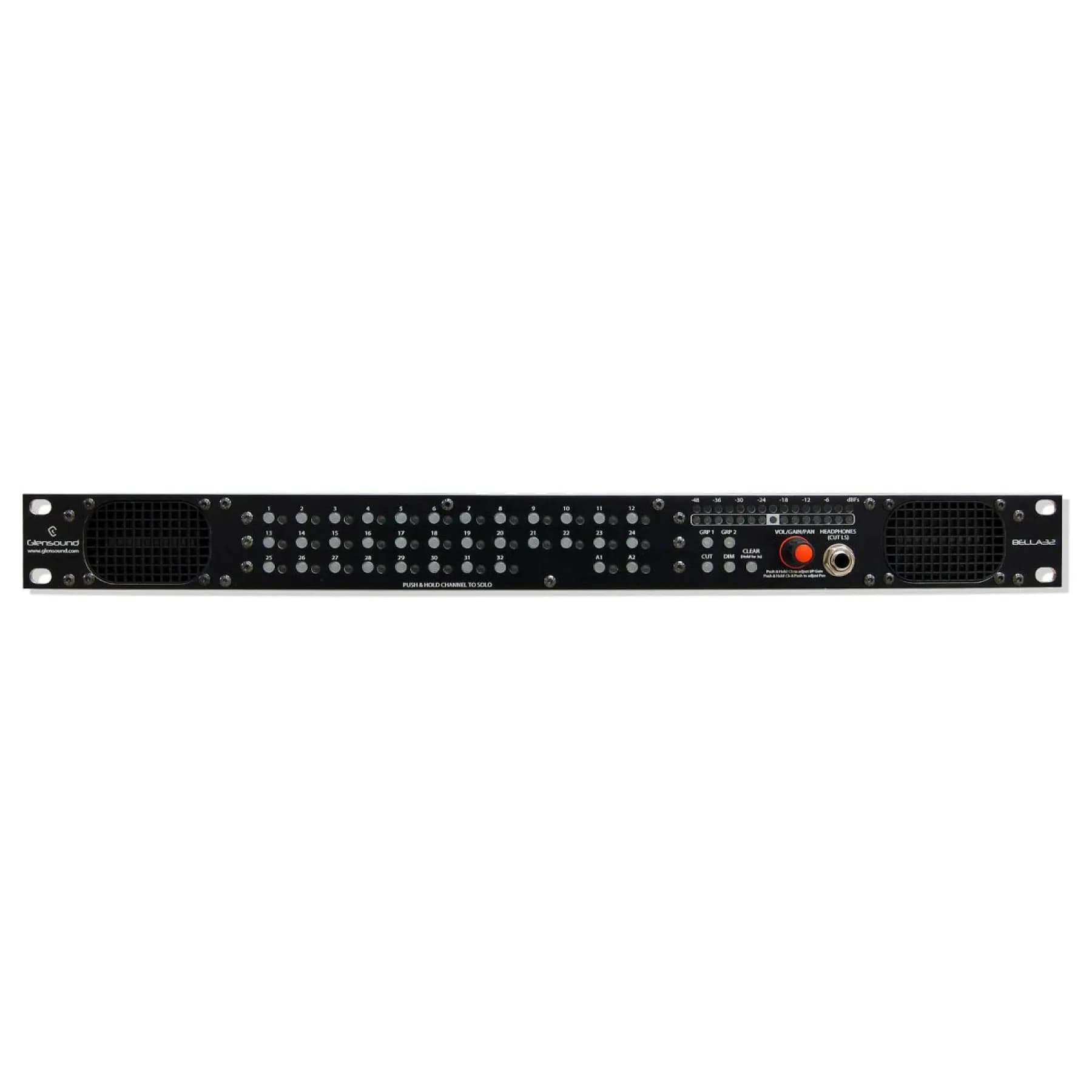

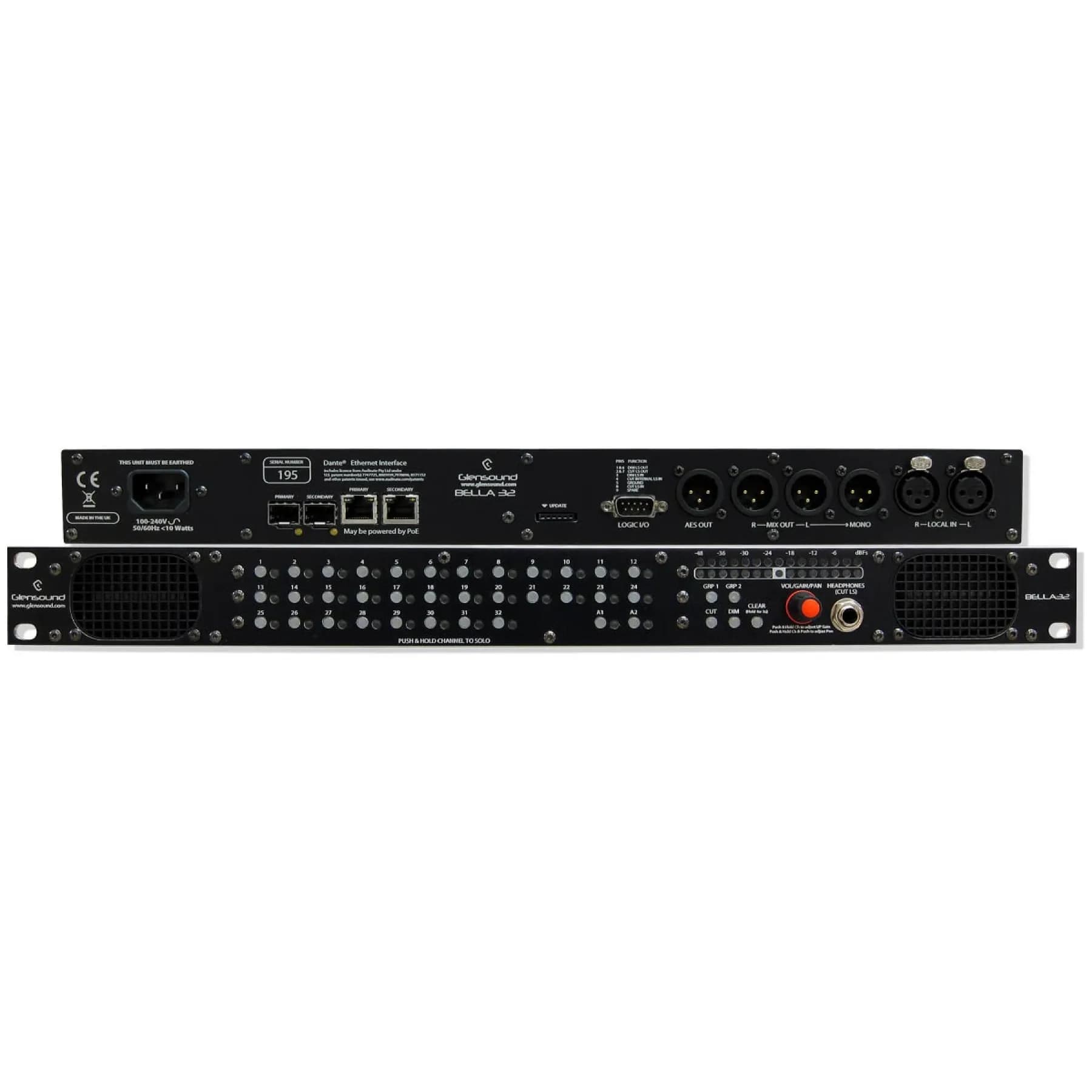

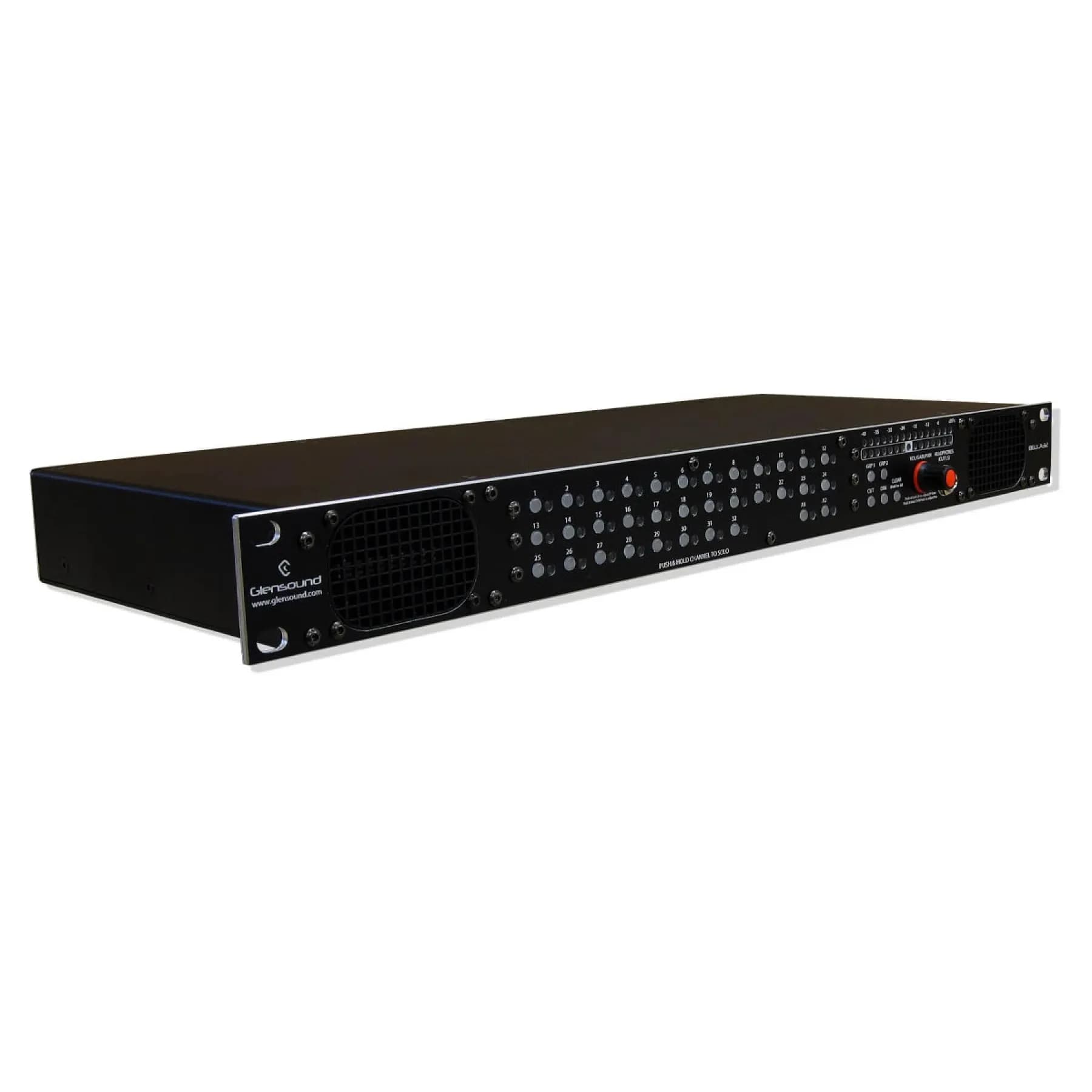

BELLA 32 extends the BELLA range to 32 network inputs plus two analogue inputs. It is designed for monitoring many feeds in production environments, with mixing, groups, PPM meters and network outputs for larger AoIP systems.

• 32 Dante/AES67 inputs with individual selection and presence indication.
• Two analogue XLR inputs available for monitoring and network routing.
• Output PPM meters, dim, cut and monitoring groups.
• Mix outputs on network, analogue XLR and AES3.

Inputs32 network + 2 analogueNetworkDante/AES67, 48 kHz, 24 bitFormat19 inch, 1U, 185 mm deepWeight1.8 kg
