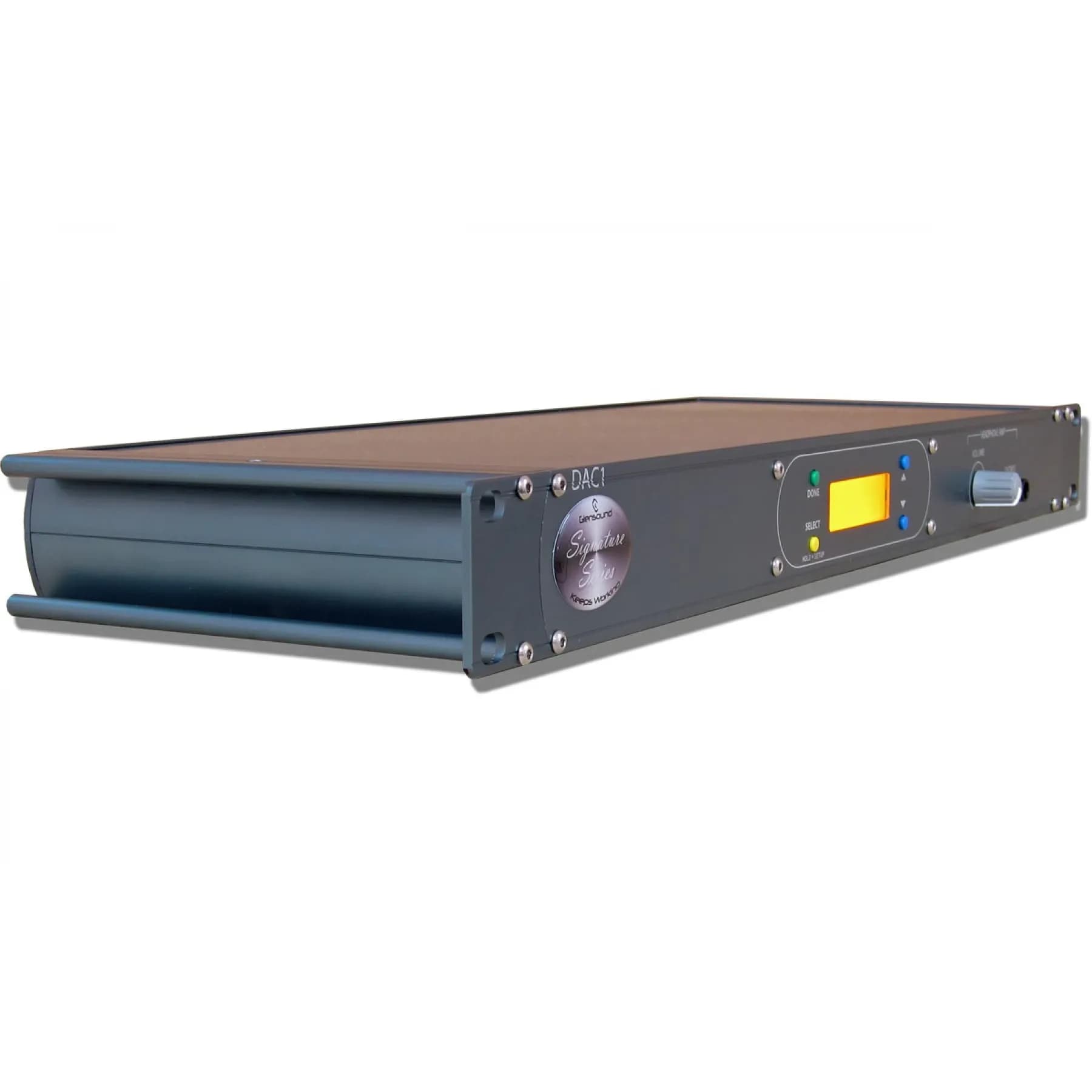

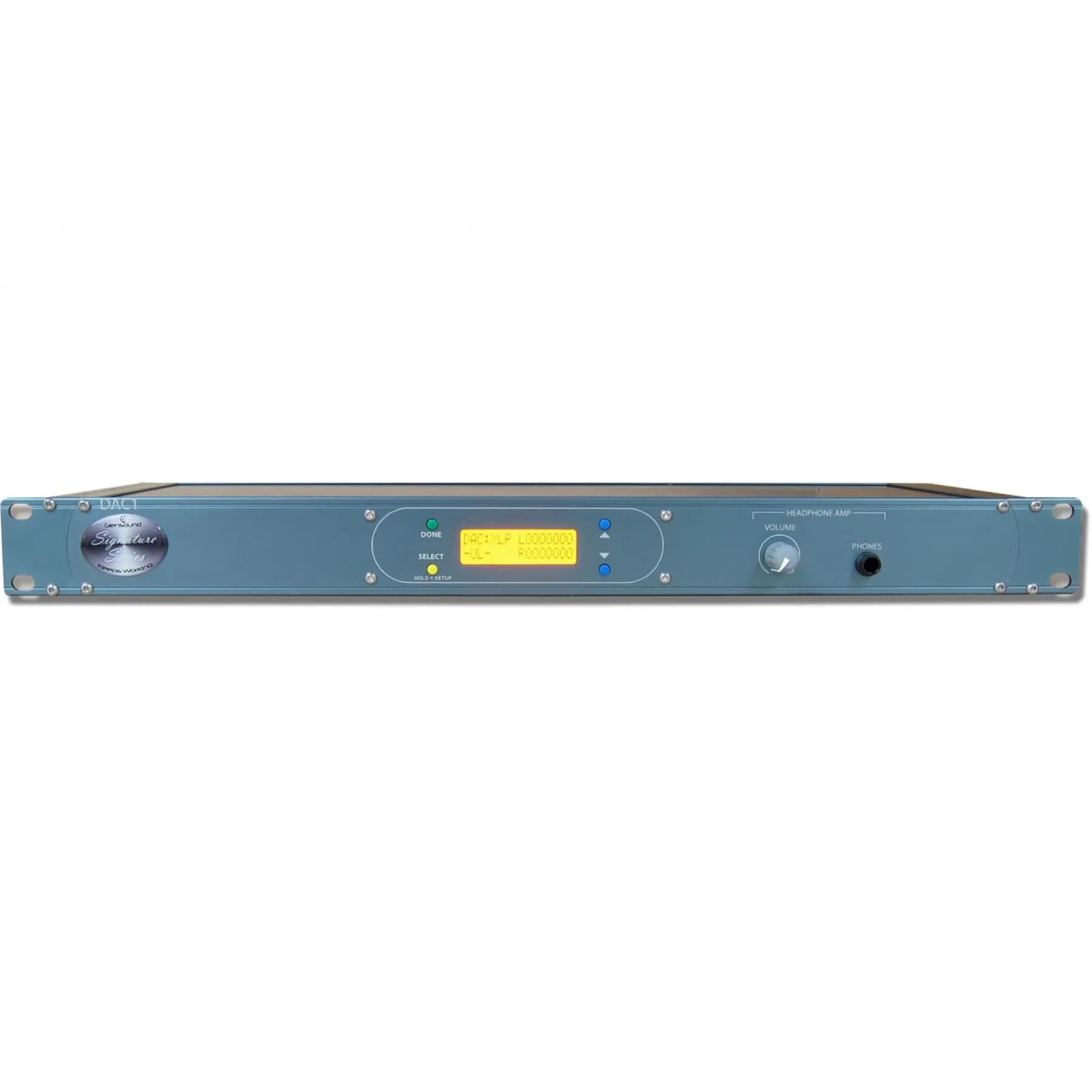

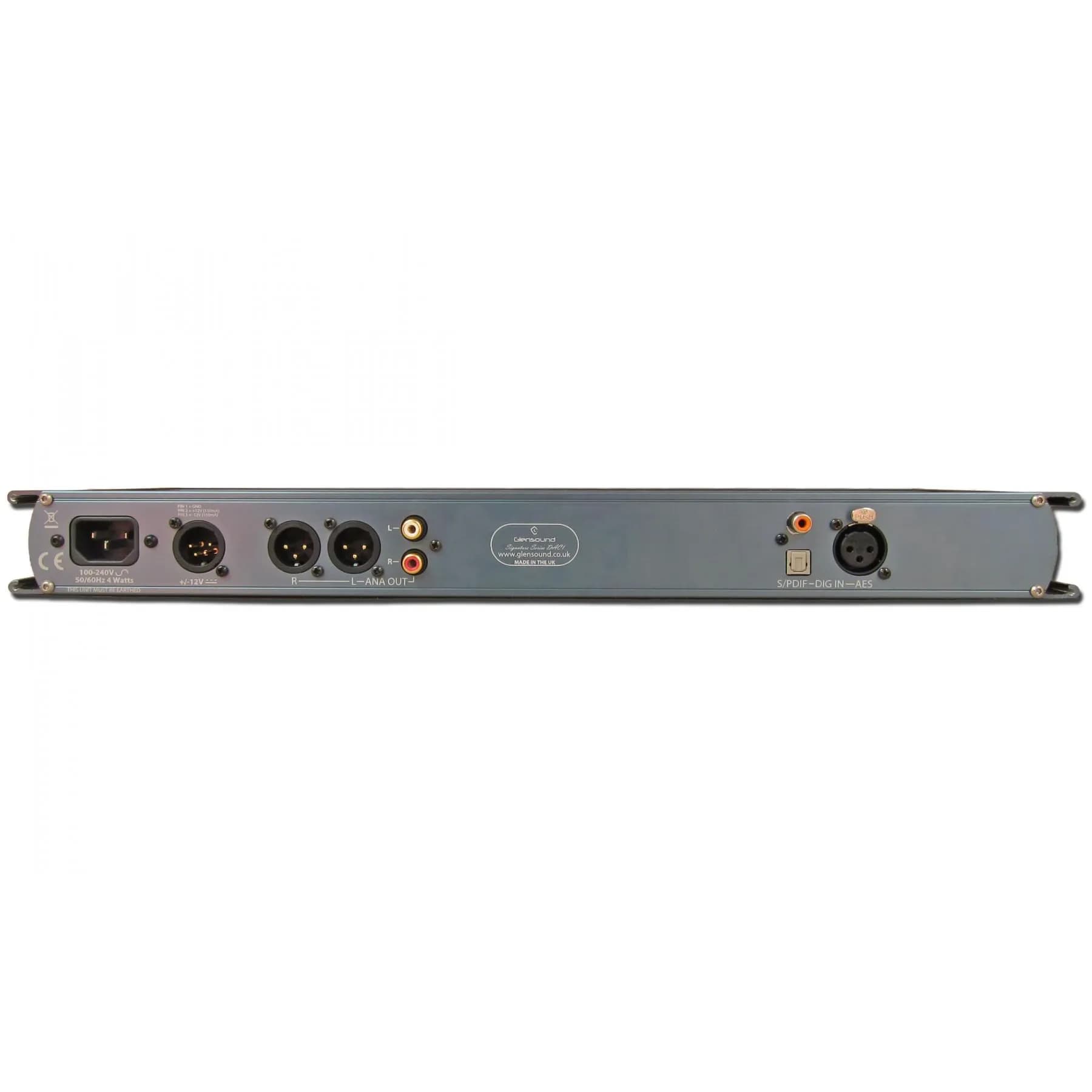

DAC 1 converts stereo digital inputs to balanced or unbalanced analogue outputs. It accepts AES3, S/PDIF or TOSLINK and provides front-panel configuration with local headphone monitoring.

• Selectable digital input on XLR, RCA or optical TOSLINK.
• Simultaneous analogue outputs on balanced XLR and RCA.
• Support for sample rates from 44.1 to 192 kHz and resolution up to 24 bit.

ConversionStereo digital to analogueInputsAES3 XLR, S/PDIF RCA and TOSLINKOutputs2 balanced XLR and 2 RCAResponse>-0.5 dB, 15 Hz to 22 kHz at 48 kHzTHD+N0.001% at 1 kHz
