DDA 1:6 is an AES digital distribution amplifier for multiplying one AES3 input to six outputs. It can pass the signal straight through or re-normalise it to restore digital signal integrity at the outputs.

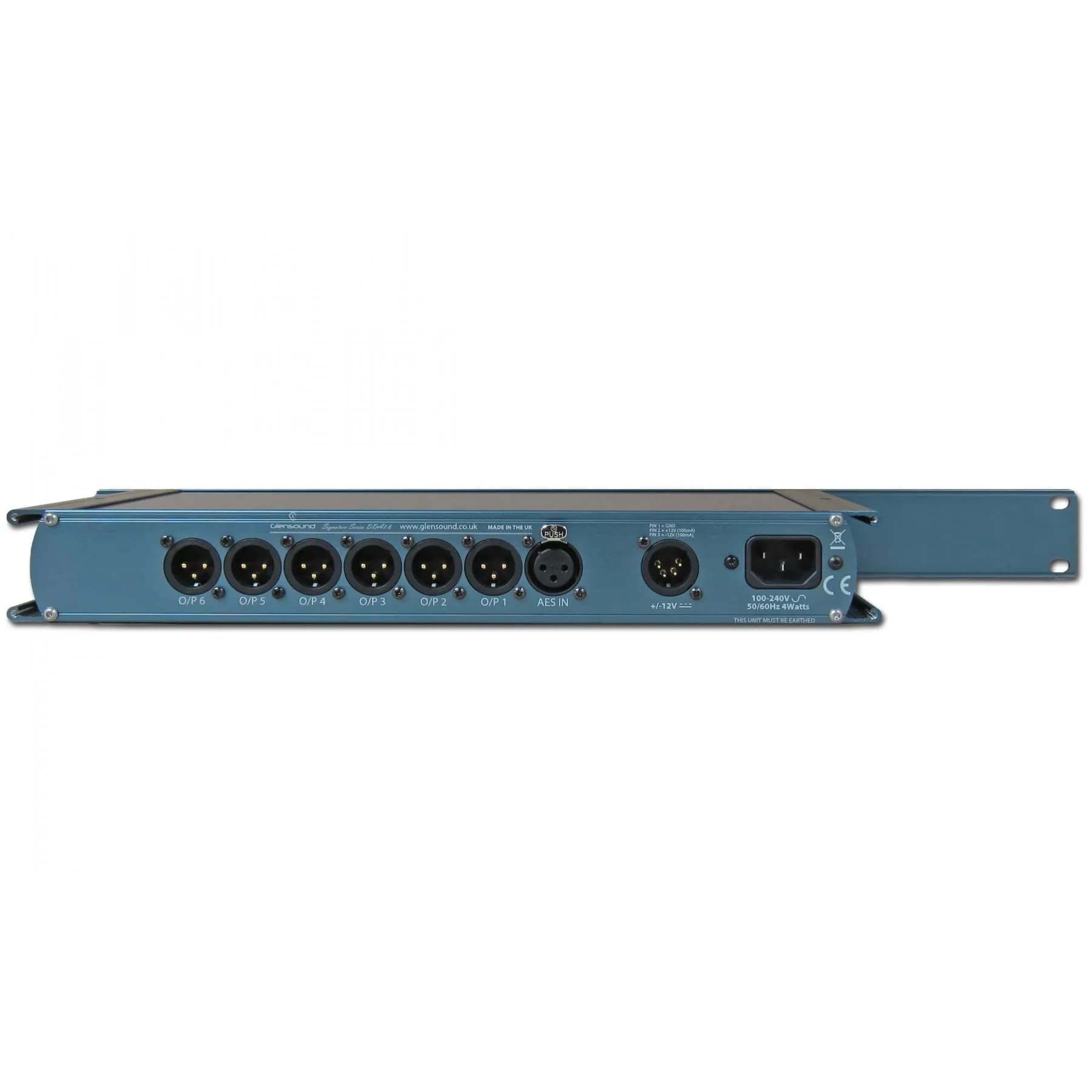

• One AES3 input and six AES3 outputs on transformer-balanced XLRs.
• Direct loop-through or re-normalised output operation according to sync requirements.

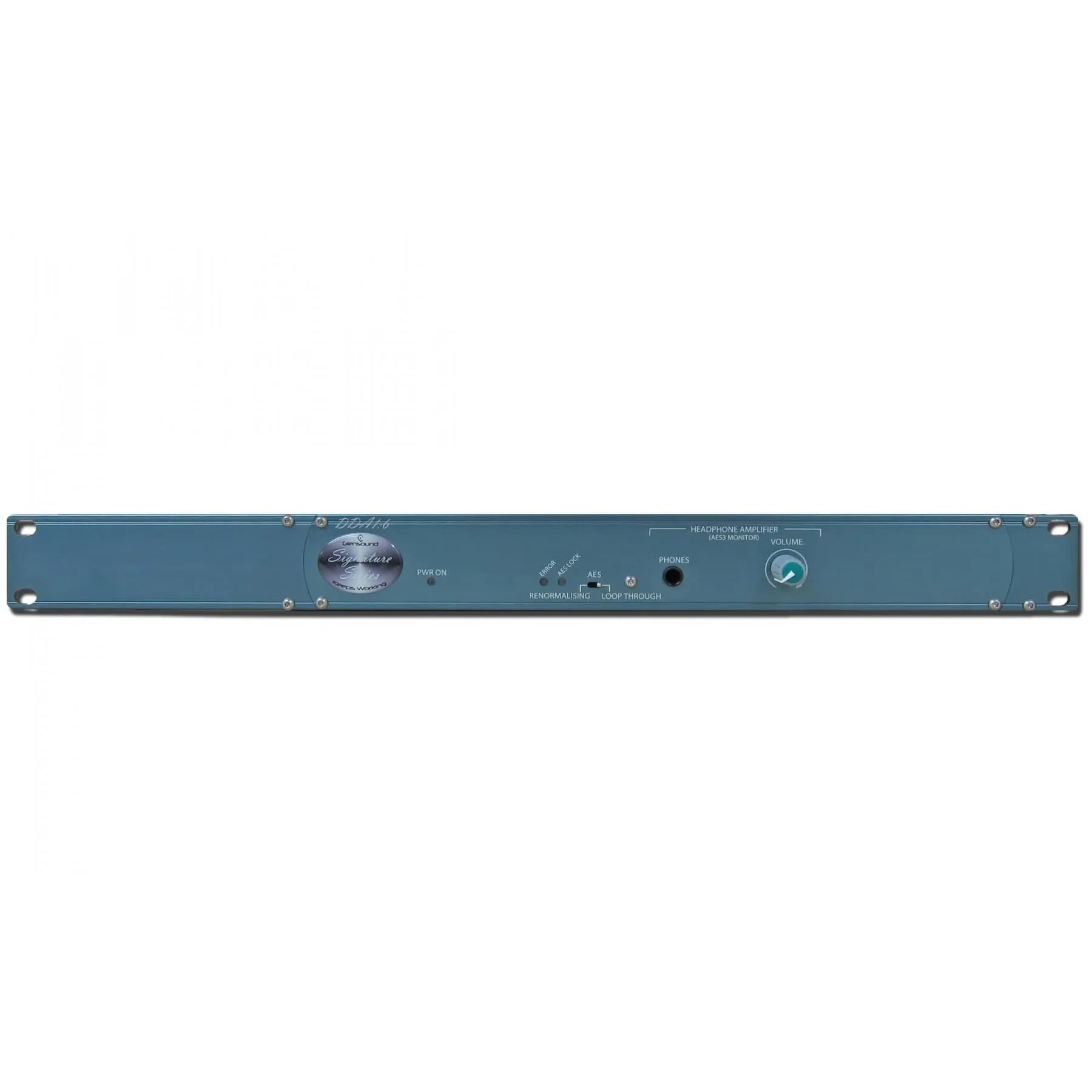

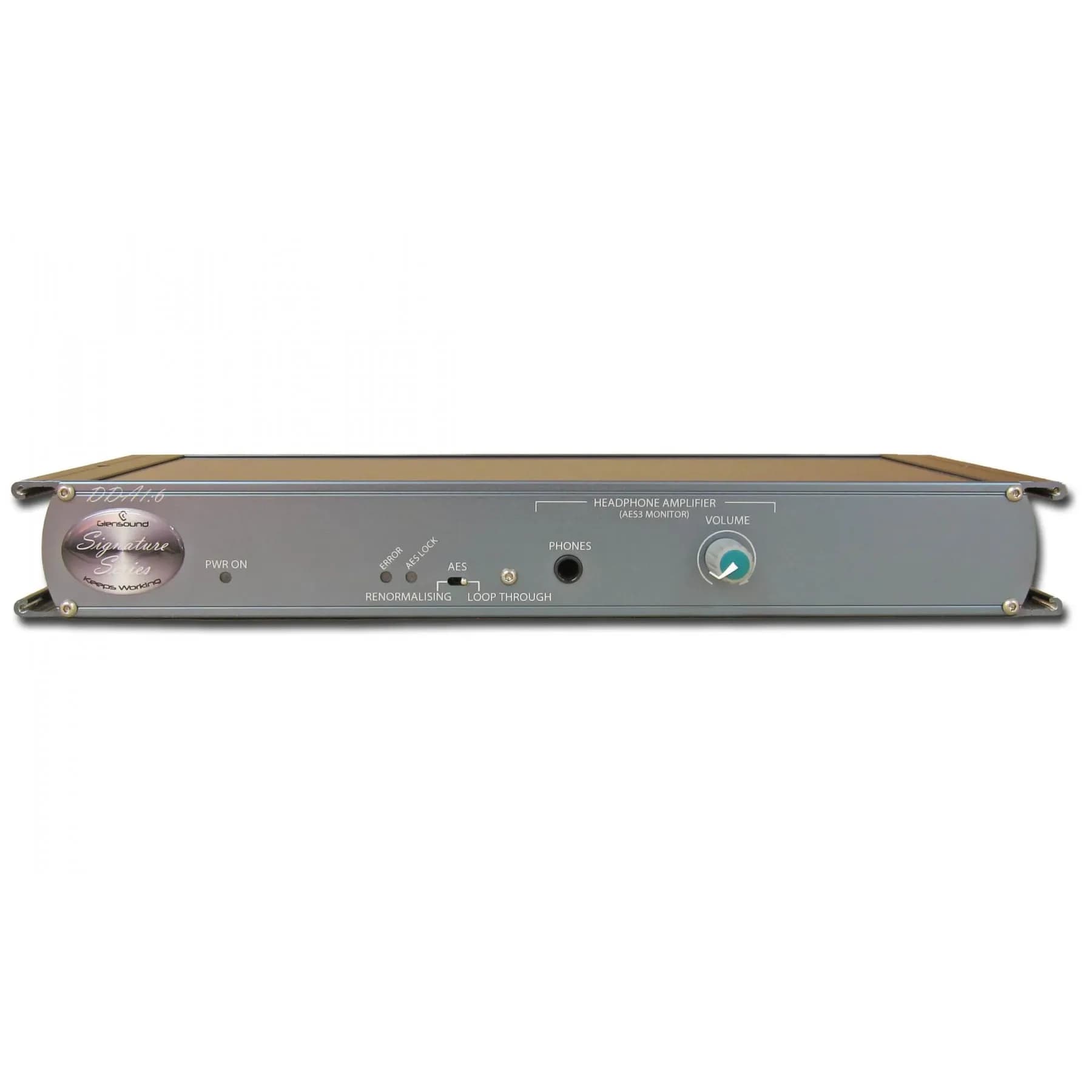

• Front-panel headphone monitoring with level control and AES lock/error indication.

Distribution1 AES3 to 6 AES3Impedance110 ohm input and outputSample rate32 to 192 kS/sResolution8, 16, 24 or 32 bitFormat1U with AC power and +/-12 V DC input
