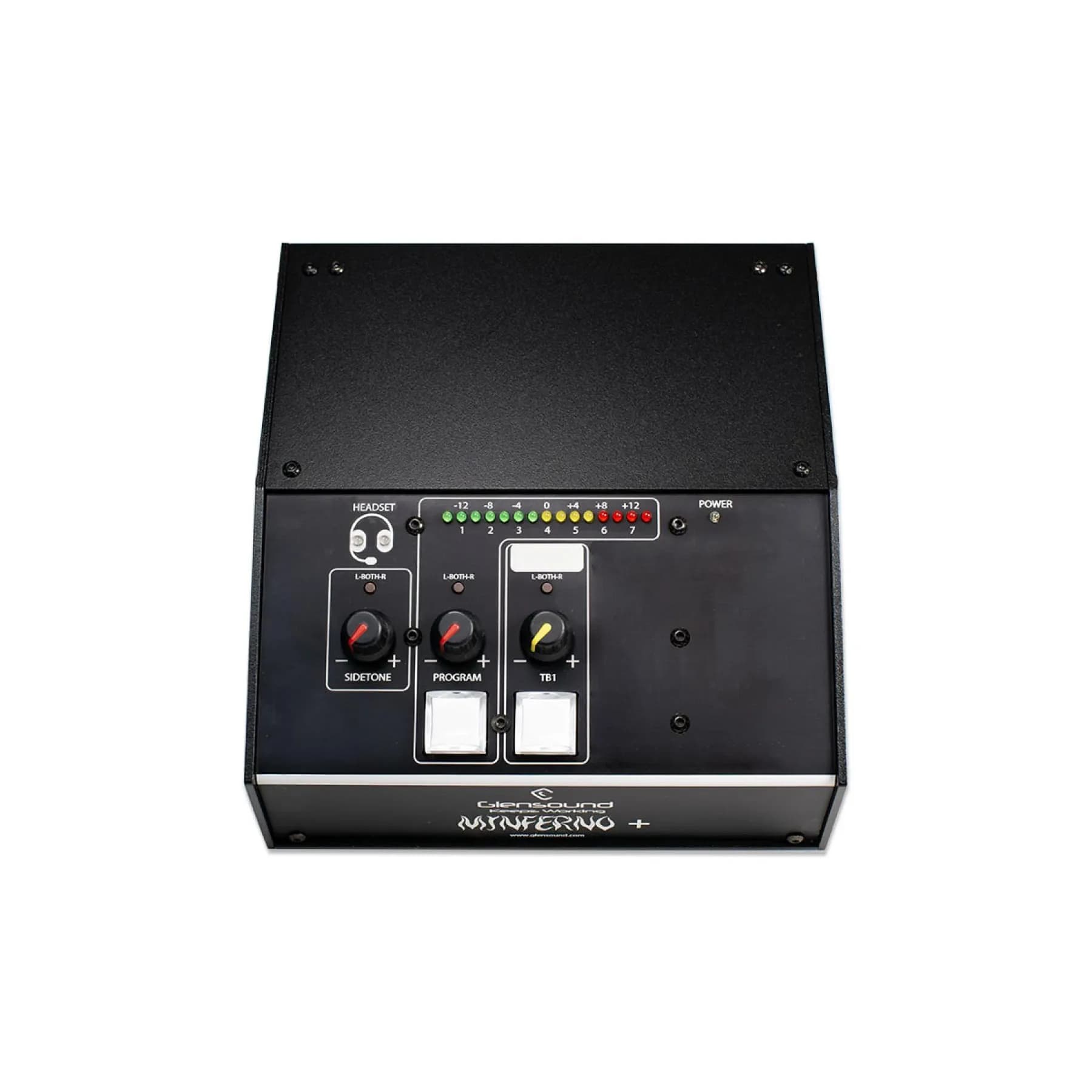

MINFERNO/1 adds one talkback channel to the base MINFERNO while retaining the compact single-commentator format. The microphone can be routed to programme or to a separate communication path from the illuminated buttons.

• One commentator with programme and 1 talkback channel.
• XLR mic/line/48 V input with Referee compressor/limiter.
• Headphone mix with Dante/AES67 sources and sidetone.

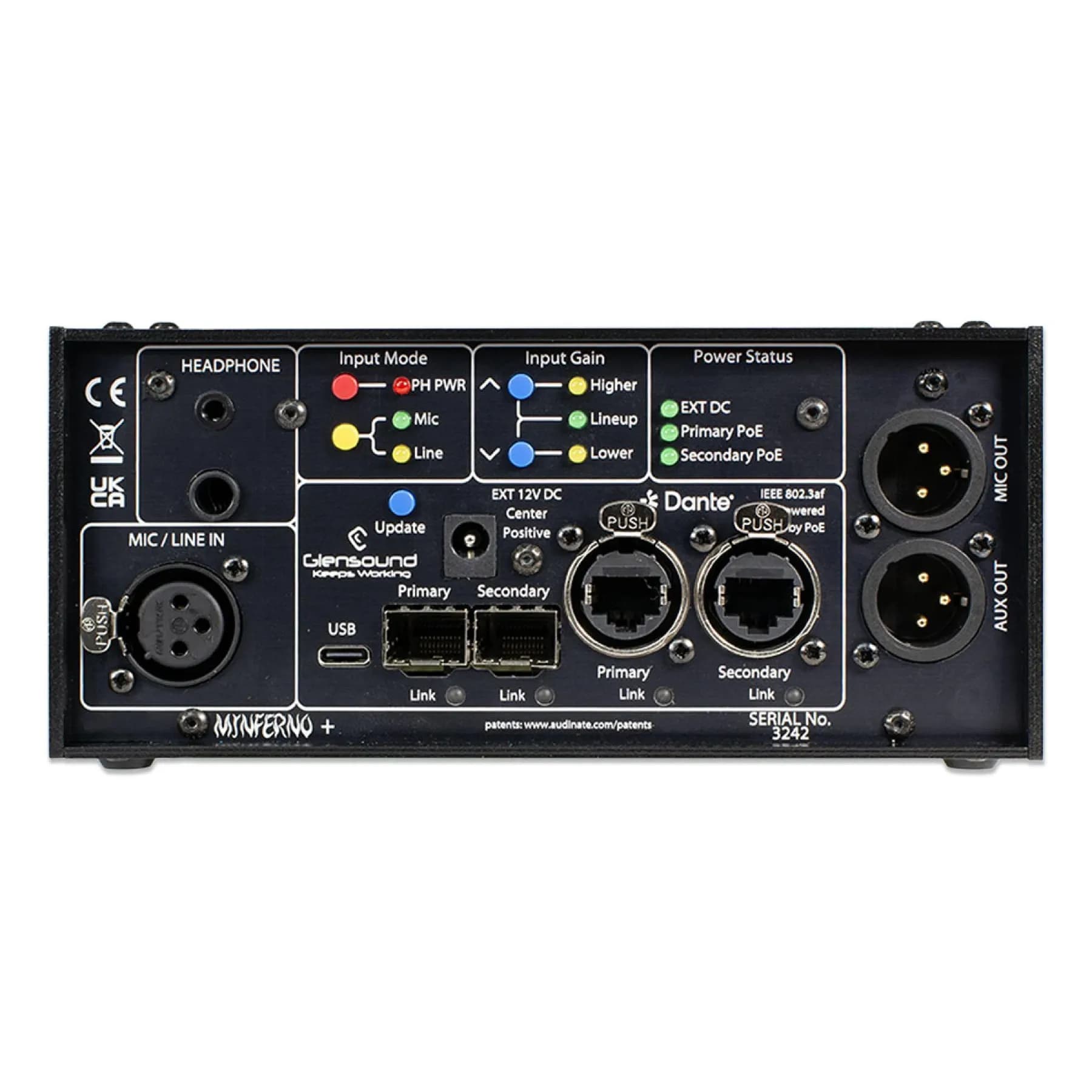

• Primary and secondary copper network links plus SFP slots.
• Remote setup of button behaviour and gain.
• 15-segment PPM meter.

Talkback1 circuitNetworkRedundant Dante/AES67PowerPoE or external DCDimensions144 x 179 x 76 mm; 1.01 kg
