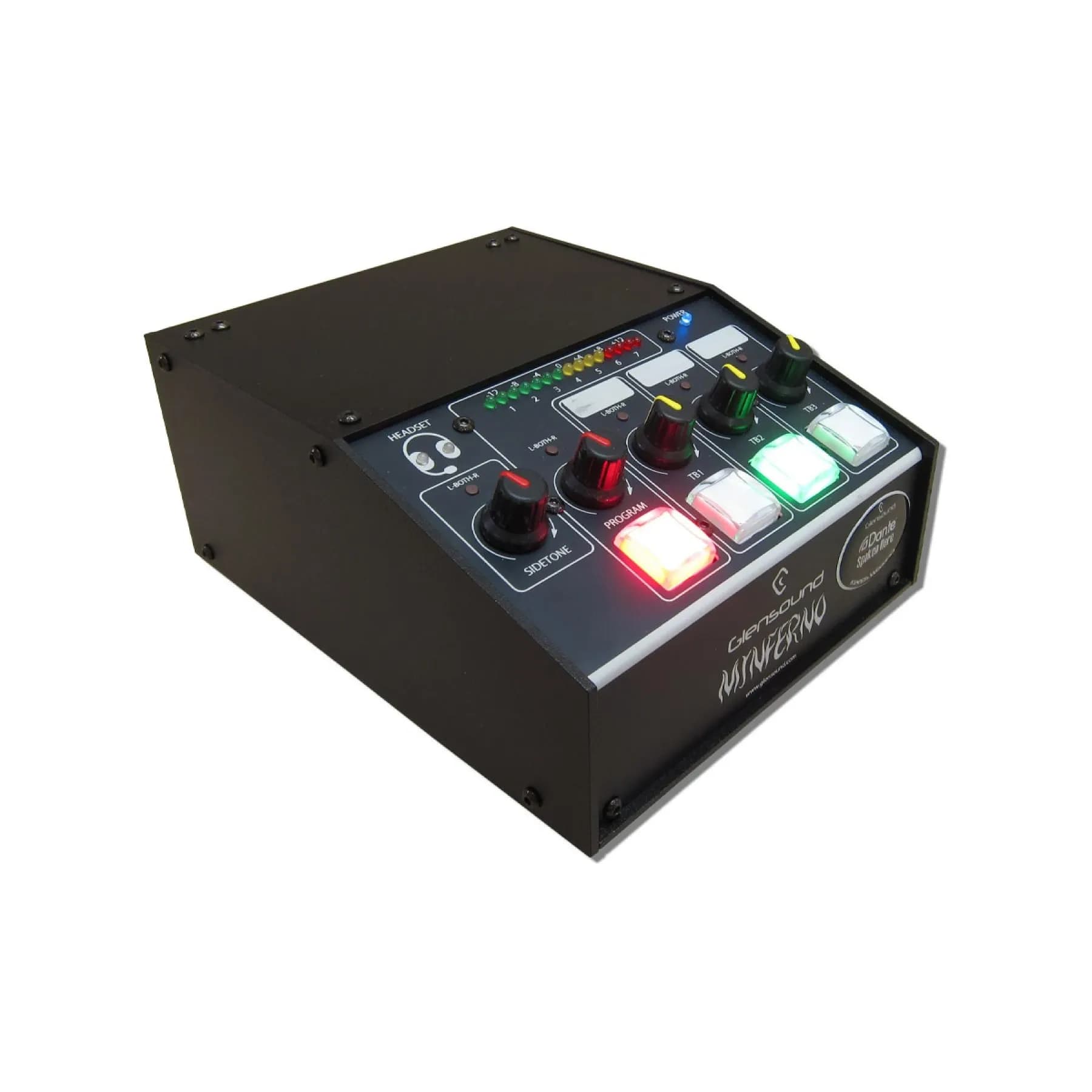

MINFERNO/3 provides three talkback channels in a compact single-commentator unit. It is the version without additional analogue output for positions that need several production communication paths within the AoIP network.

• Main programme path and 3 talkback channels.
• XLR mic/line/48 V input with gain control.
• Headphone mixer with four network sources and sidetone.
• Illuminated configurable buttons with programme and talkback interaction.

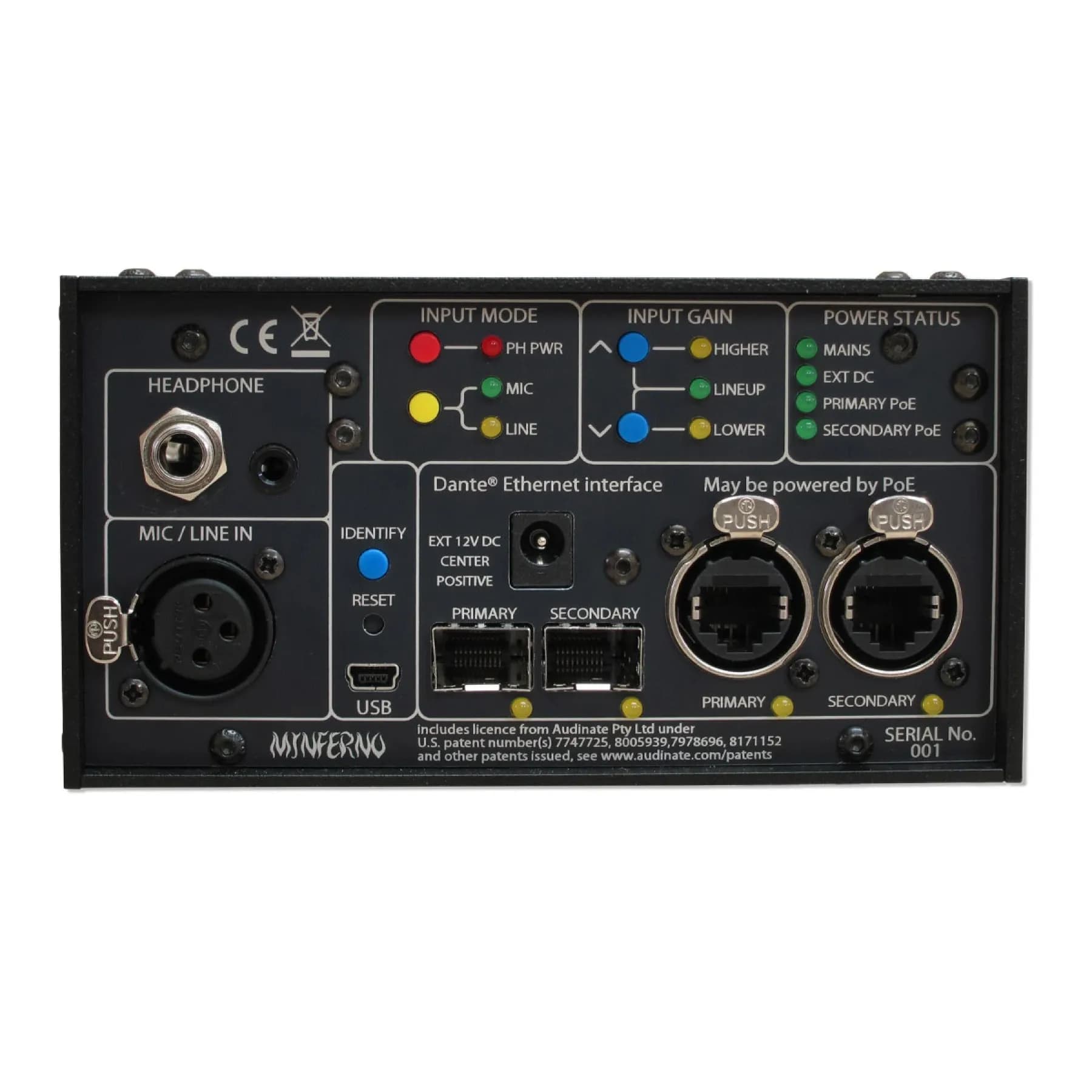

• Primary and secondary Dante/AES67 network with SFP.
• 15-segment LED PPM and PoE/DC power.

Talkback3 circuitsAnalogue mic outputNot includedNetworkRedundant Dante/AES67Dimensions144 x 179 x 76 mm; 1.01 kg
