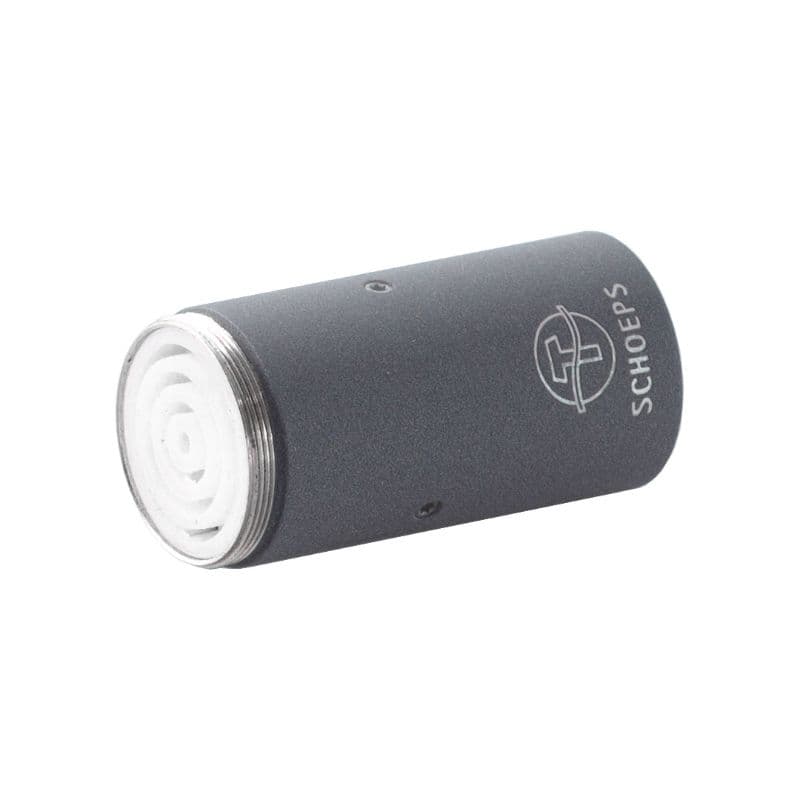

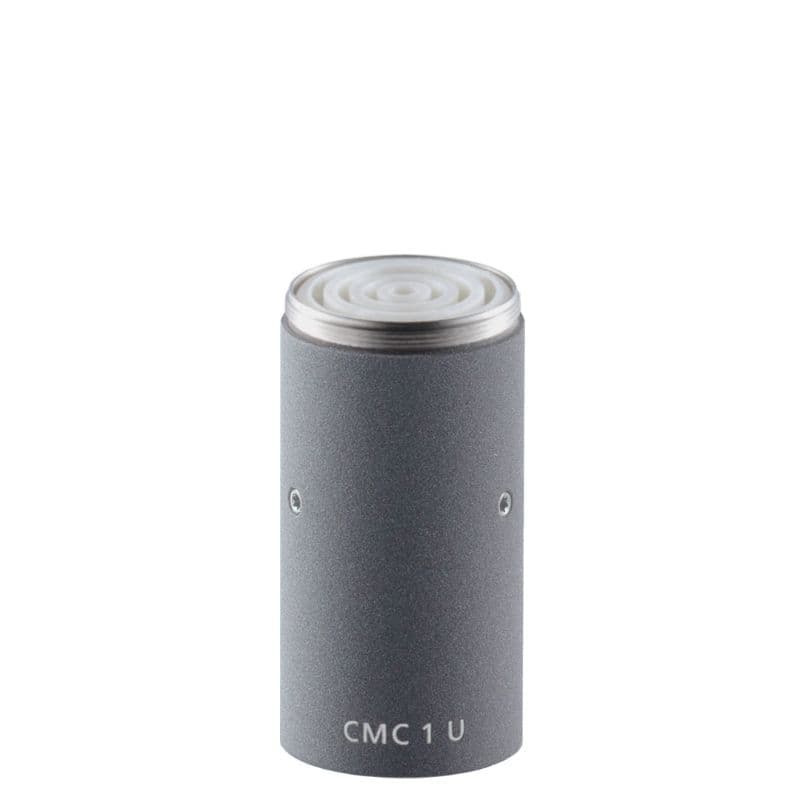

The Schoeps CMC 1 U is a miniature Colette microphone amplifier with an analogue XLR-3M output; it must be combined with an MK capsule to form a complete microphone. It is compatible with every MK capsule and Colette active accessory, allowing it to replace the CMC 6 where microphone size and weight matter.

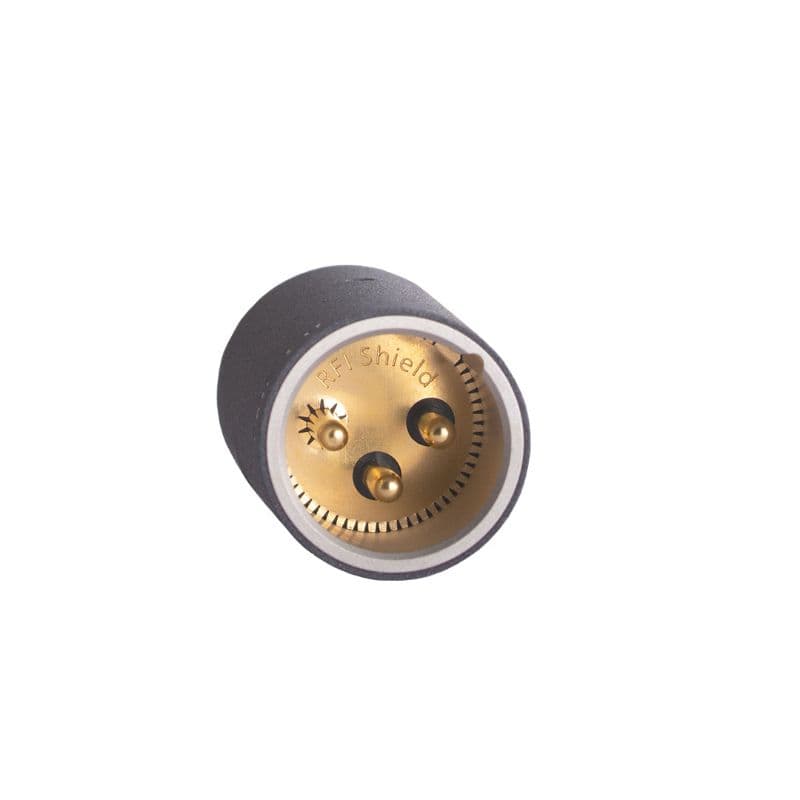

The body is about one third the length of the CMC 6 and 53% lighter, while providing equal or better electrical performance. It operates from 12 V or 48 V phantom power and incorporates the Schoeps RFI Shield for high immunity to radio-frequency interference and induced hum.

Key technical data:

• Frequency response: 20 Hz-20 kHz.
• Maximum level with an MK 4 capsule at less than 0.5% distortion: 135 dB SPL on P48 and 131 dB SPL on P12.
• Current consumption: 2 mA on P48 and 3 mA on P12.
• Balanced, direct-coupled class-A output with 50-ohm impedance.
• Ultrasonic output filtering to reduce interference such as that generated by camera autofocus systems.

Dimensions: 36 mm long and 20 mm in diameter. Weight: 36 g.
