6-way multi-band diversity distributor

The Audio Wireless DADM226-MK2-MB is an active diversity antenna distribution module for professional sound bags. It allows up to six diversity receivers to be fed from a single pair of antennas and offers 20 preprogrammed bandpass filters to suit different manufacturers and common frequency ranges.

Sound bag workflow

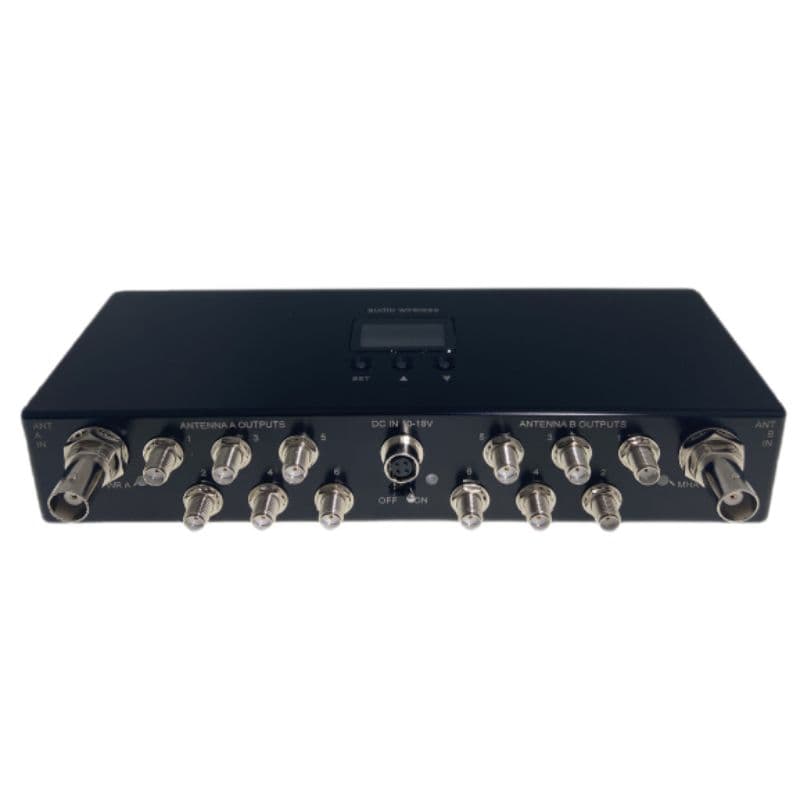

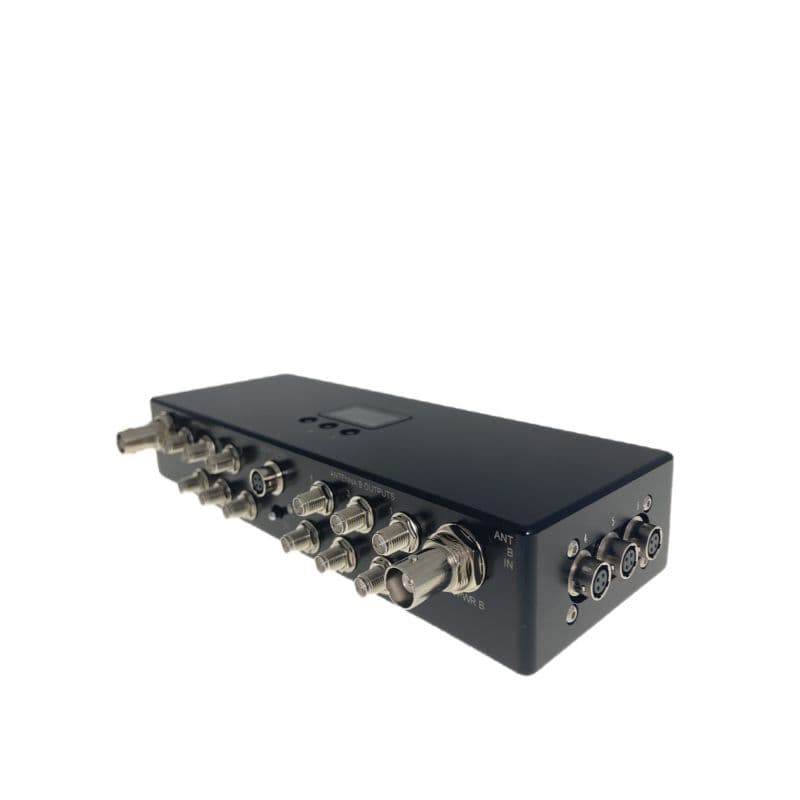

The module integrates two BNC inputs, 2 x 6 SMA mini RF outputs, adjustable gain, remote power for active antennas and six Hirose DC outputs for auxiliary equipment. The OLED display lets you monitor the gain, the power supplies and the system input voltage.

Main features

• One pair of antennas feeds up to six diversity receivers
• 20 preprogrammed bandpass filters
• User-adjustable gain
• Remote power for active antennas
• 6 Hirose DC outputs
• OLED menu and LED indicators
• Master on/off switch
• CNC-machined aluminium casing

Table of preprogrammed filters
