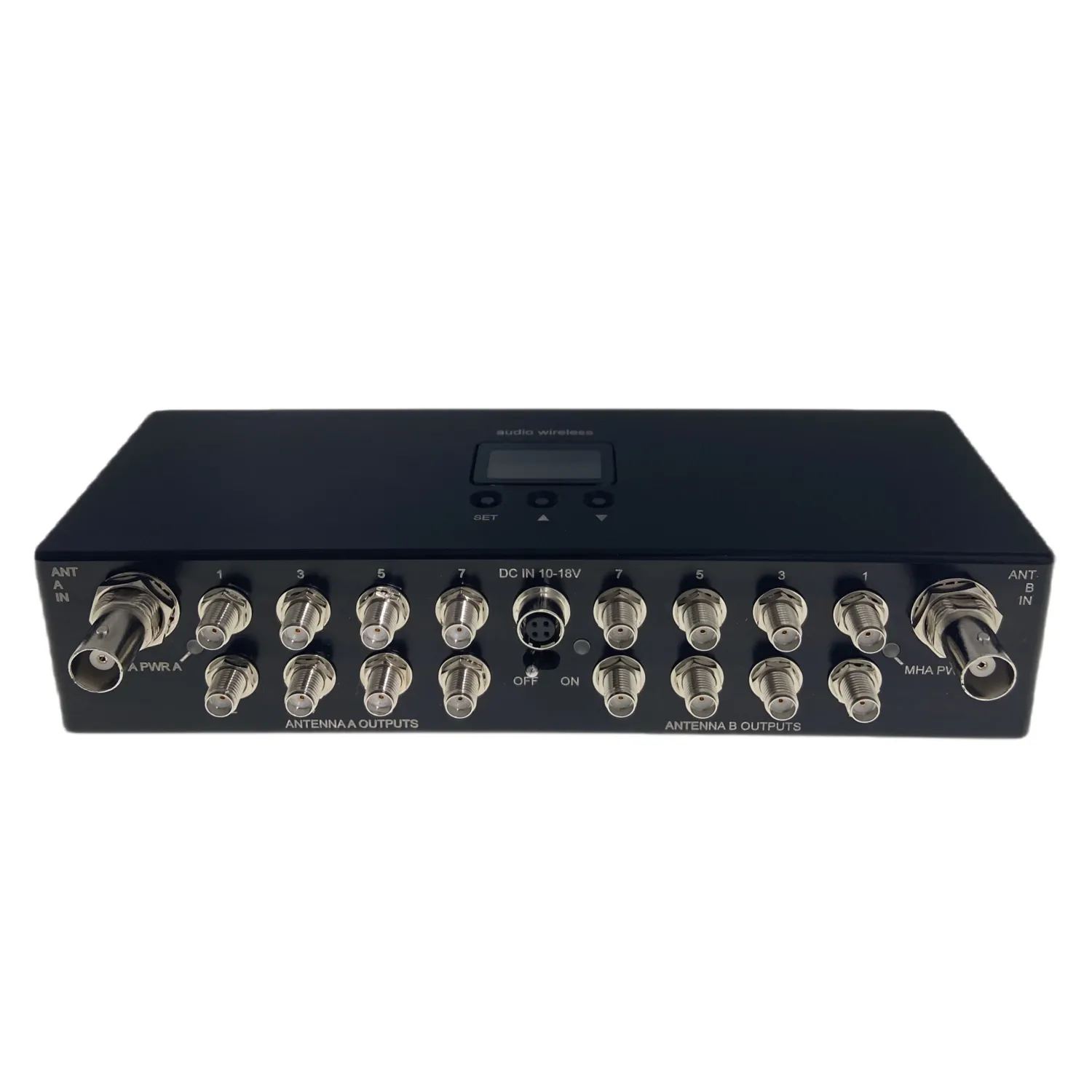

The Audio Wireless DADM228 is an active antenna distributor for sound bags and carts. It connects a pair of antennas to up to eight diversity receivers.

Built-in band-pass filters and adjustable gain help match RF distribution to the system. The OLED display shows the supply voltage.

Features

• Gain adjustable from −10 to +6 dB in 1 dB steps.
• Switchable power for active antennas.

Specifications

• RF inputs: 2 BNC connectors, 50 Ω.
• RF outputs: 16 SMA connectors, 50 Ω, arranged in two groups of eight.
• External power: 10–18 V DC via a 4-pin Hirose connector.
• Dimensions: 192 × 42 × 64 mm (width × height × depth).
• Unit weight: 465 g.
