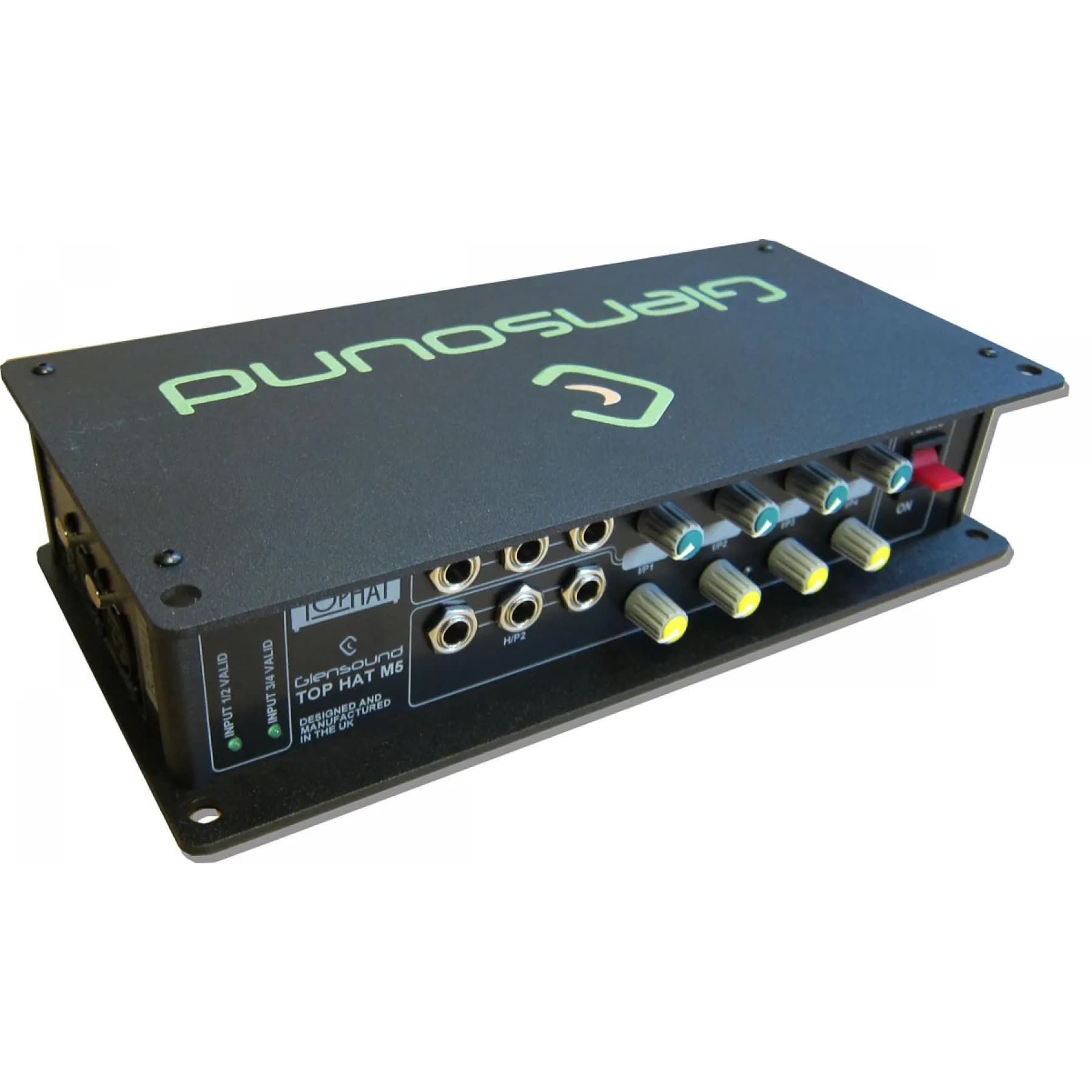

Top Hat M5 extends the Top Hat M3 concept with analogue and AES3 inputs. It is intended for portable monitoring where two headphone mixes and compatibility with digital inputs are required.

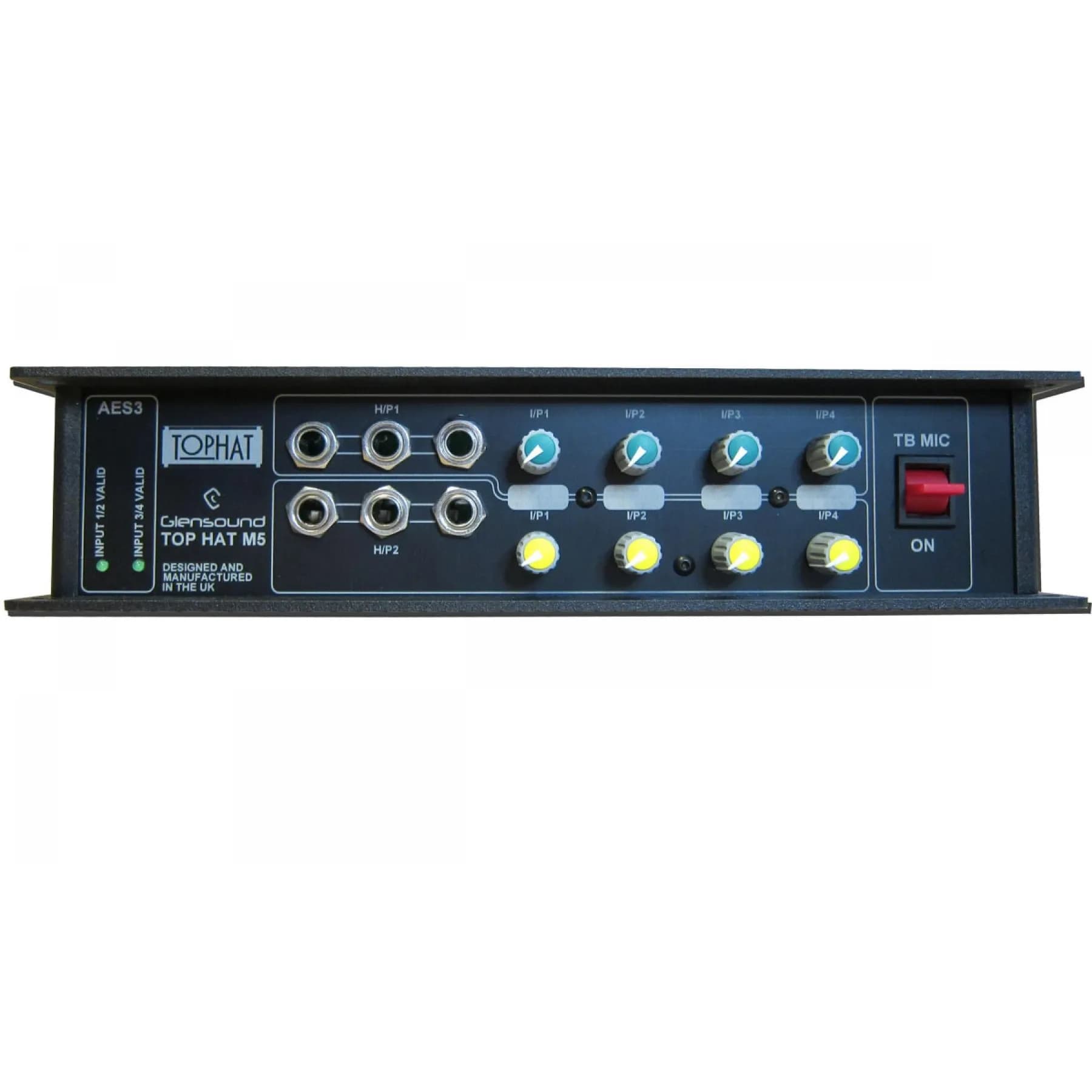

• Two headphone amplifiers, three outputs per amplifier.

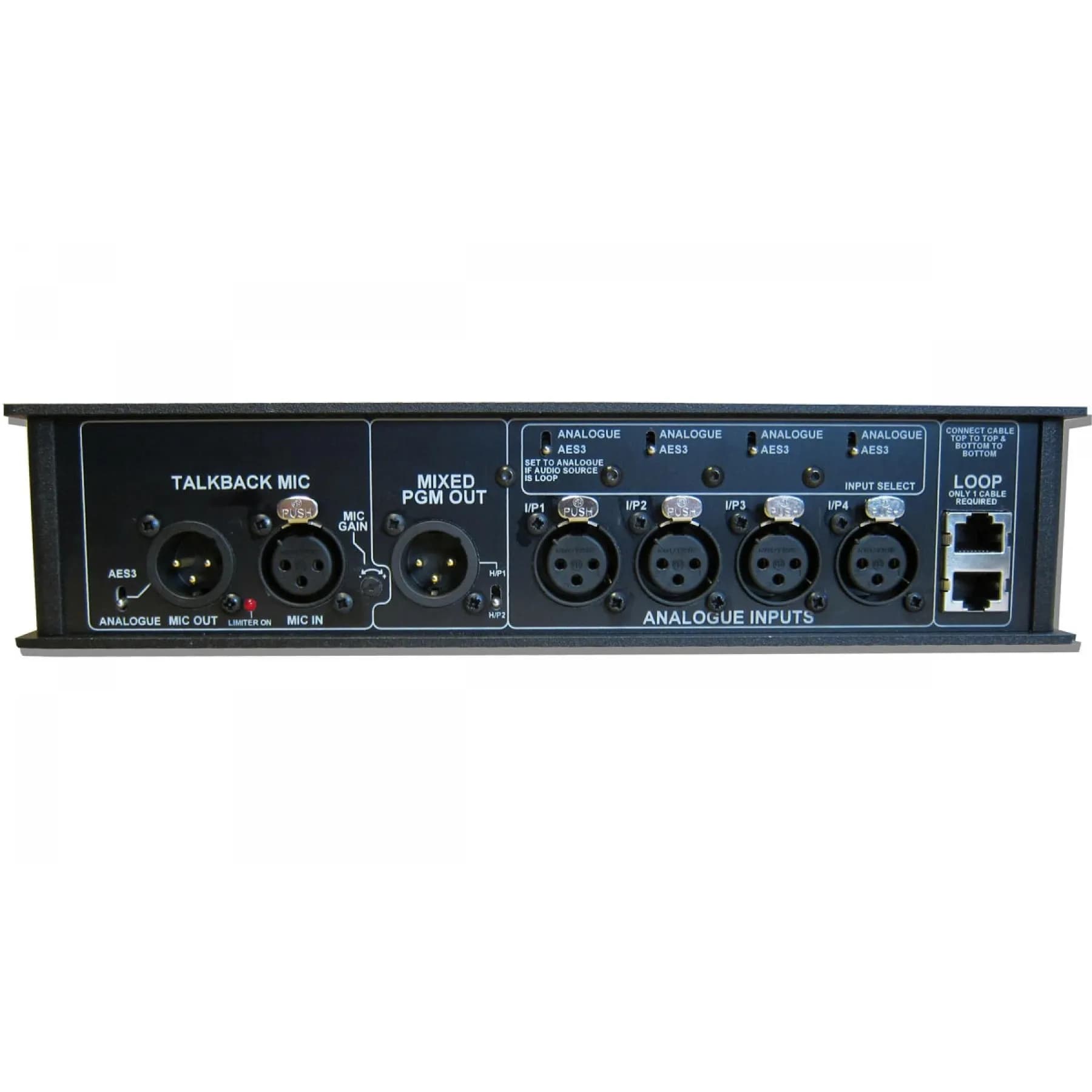

• Four balanced analogue inputs and two stereo AES3 inputs.
• Analogue or AES3 input selection per amplifier.
• Return communication output available as analogue or AES3.

Power3 D cells or external DCInputs4 analogue + 2 stereo AES3LinksRJ45 for analogue audioHeadphone outputs6 on 6.35 mm
