Description

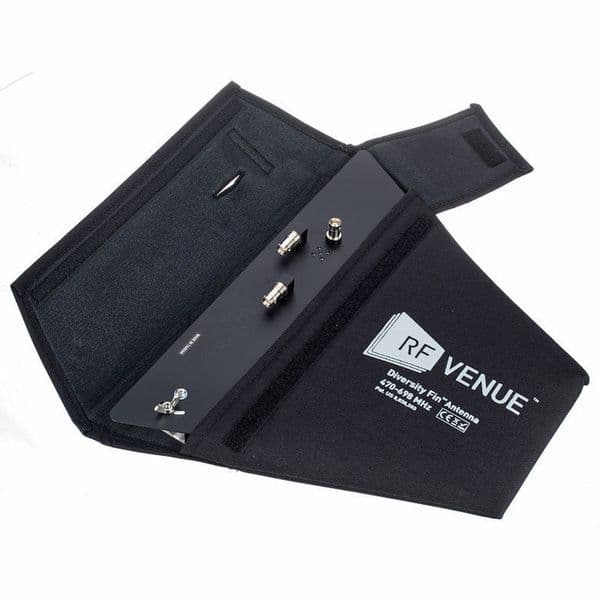

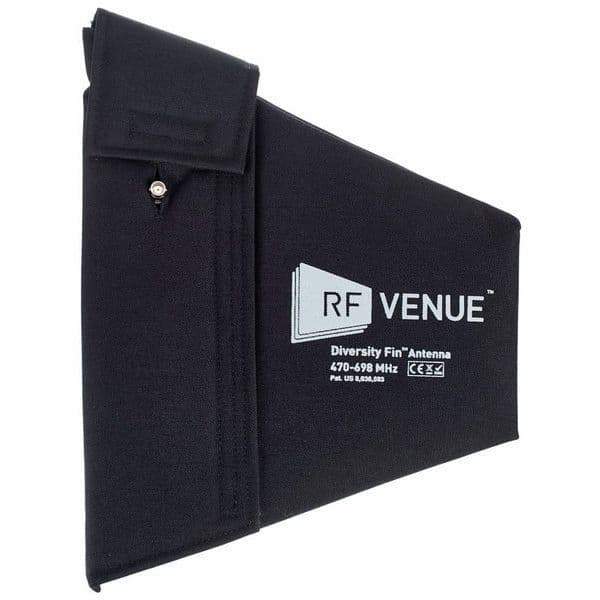

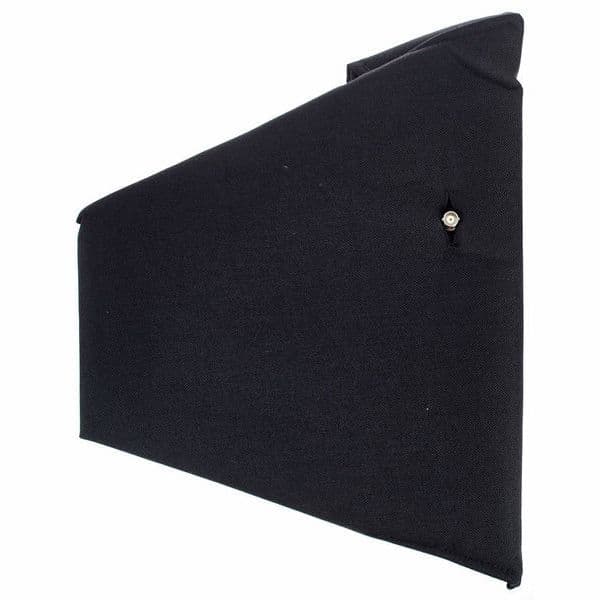

RF Venue Diversity Fin Antenna: Revolutionising wireless microphone reception. Unlike traditional "paddle" antennas, this antenna ensures a constant signal regardless of microphone orientation. This single antenna provides superior coverage compared to two traditional "paddle" antennas, offering cost savings, improved performance and simpler installation. Compatible with all wireless brands, both analogue and digital.

Specifications

Electrical

Operating frequency470-698 MHz
Bandwidth228 MHz
Average return loss-9.4 dB
Impedance50Ω

LPDA

Beamwidth140° azimuth
F/B ratio-8 dB
F/S ratio-5 dB
Gain5 dBd

Dipole

Beamwidth100° azimuth
F/B ratio-5 dB
F/S ratio-13 dB
Gain1.8 dBd

Physical

Length300 mm / 12 inches
Height370 mm
Weight454g / 1lb

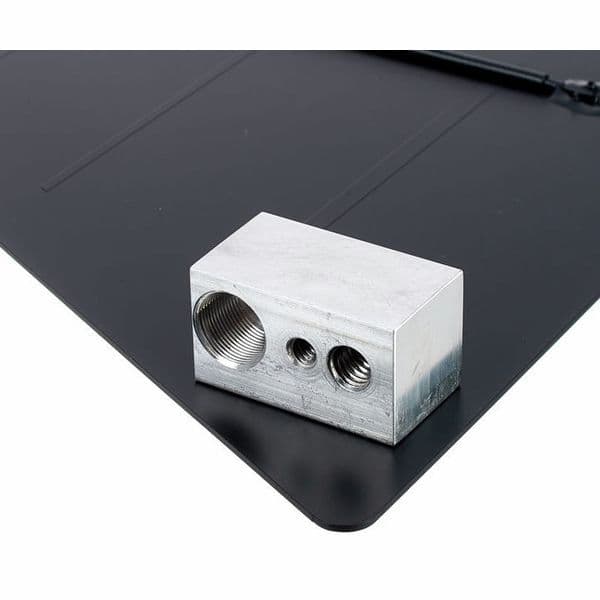

Mounting threads1/4-20, 3/8-16, 5/8-27
Operating temperature-23-54°C / -9-130°F
ColourBlack
Connector(s)(2) BNC f
