Description

Description

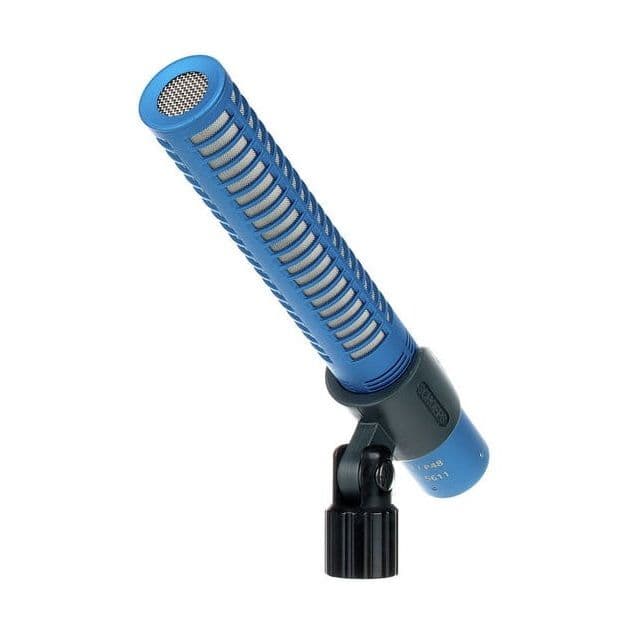

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.

Vídeos

Technical Specifications

Pickup patternSupercardioid / lobe-shaped
Frequency range60 Hz - 20 kHz
Sensitivity-35 dB (V/Pa), 17 mV/Pa
Equivalent noise level (A-weighted)14 dB
Equivalent noise level (CCIR)24 dB
Signal-to-noise ratio (A-weighted)80 dB

Maximum sound pressure level (THD < 0.5 %)

130 dB-SPL (P48)

115 dB-SPL (P12)

Maximum output voltage

1 V (0 dBV) with 2 kΩ load

High shelf filterswitchable, +5 dB at 10 kHz
Low cut filterfixed, 70 Hz, 24 dB/oct.
Minimum recommended load impedance2 kΩ
Output impedance100 Ω
Maximum cable length> 100 m
SCHOEPS RFI ShieldYes

Powering standard / Valid range

P48 / >24 V

P12 / >11 V

Current consumption2.3 mA (P48)
Common mode rejection ratio (at 1 kHz)> 55 dB
OutputXLR-3M, analog, 1 channel
Length151 mm
Diameter21 mm
Weight78 g
